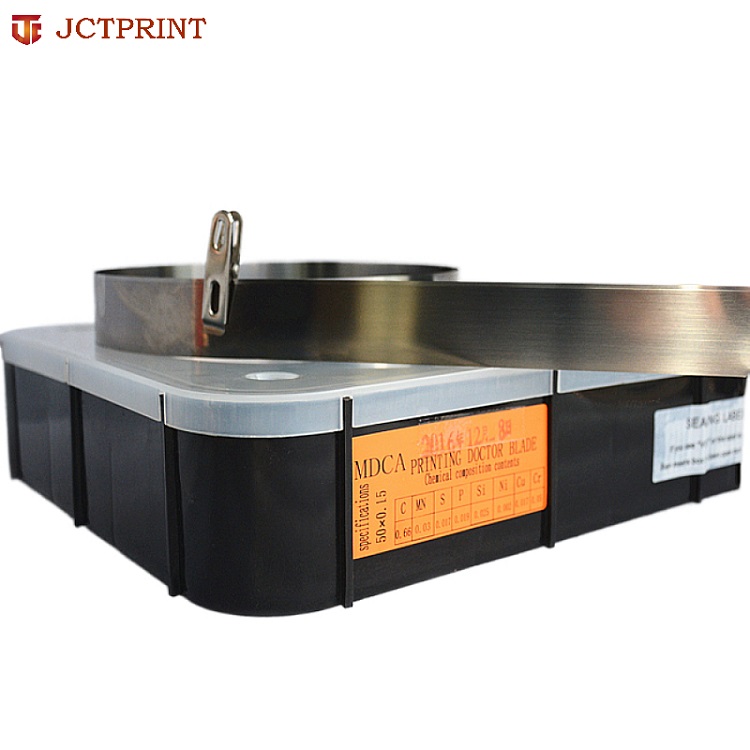

High-quality wear-resistant doctor blade

The doctor blade is made of high-quality steel, unique technology and high precision.

Thin blade with strong elasticity, high toughness and good smoothness.

Advantages of JCTPRINT printing doctor blade

1.Excellent wear resistance for longer blade life.

2.Good oxidation and corrosion resistance.

3.Reduce startup time.

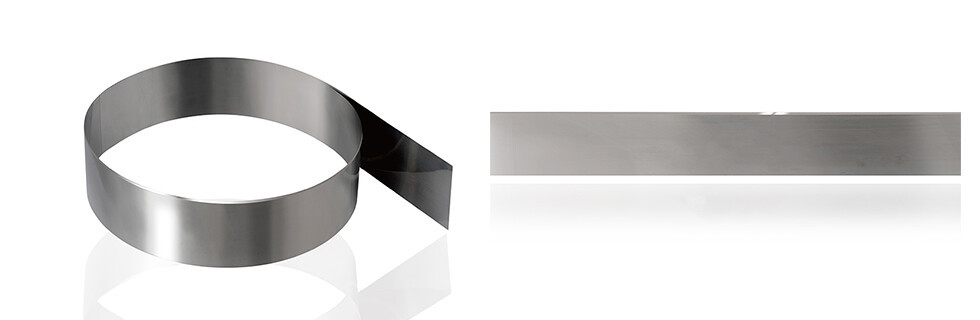

Doctor blade application

Printing mdc doctor blade is widely used in gravure packing printing, publication gravure printing, flexography printing, coating printing, offset coating etc.

Technical data sheet

Hardness: 1960N/mm(580HV+/-15)
Edge thickness:0.07mm-0.10mm
Edge height:1.3mm
Blade thickness:0.15mm-1.5mm
Blade height:10-60mm
Length of each box:100m

Doctor Blade Dimension

Regular size

10×0.1

30(40,50,60)×0.15

25(30,35,40,50,60)×0.2

17(30,40,50,60)×0.3

60×0.4

50×0.5

The above are regular sizes, we can customize for you according to your needs.

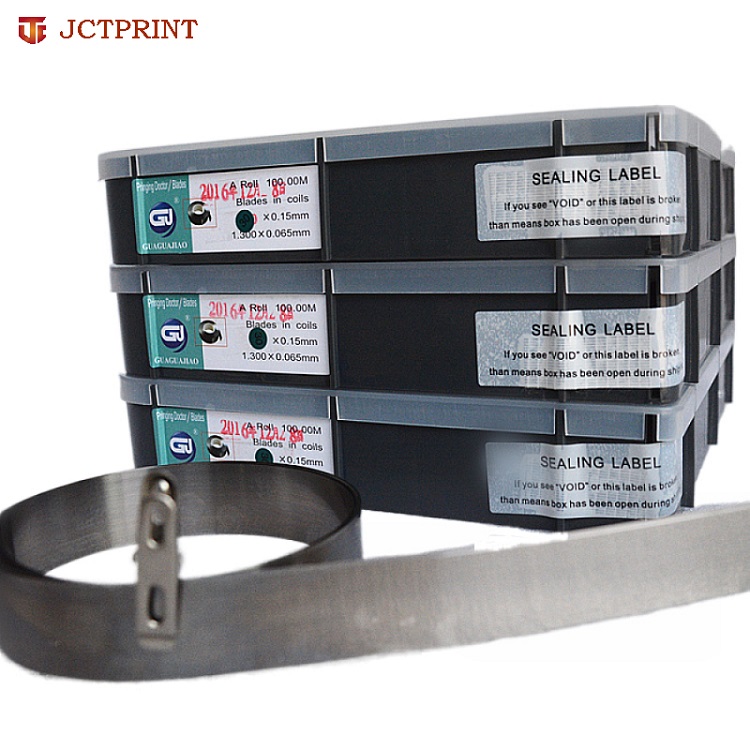

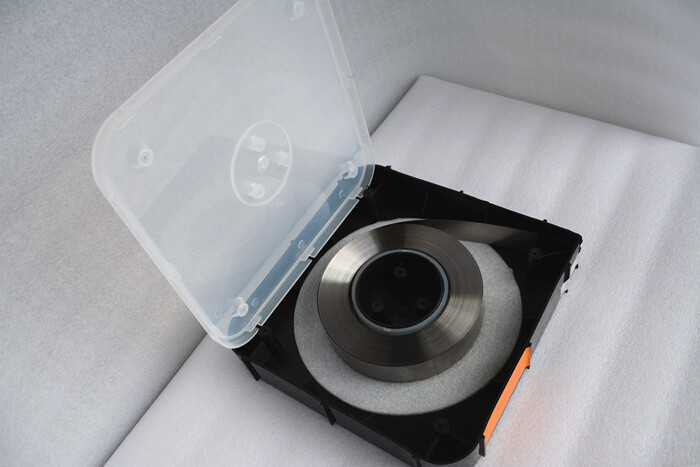

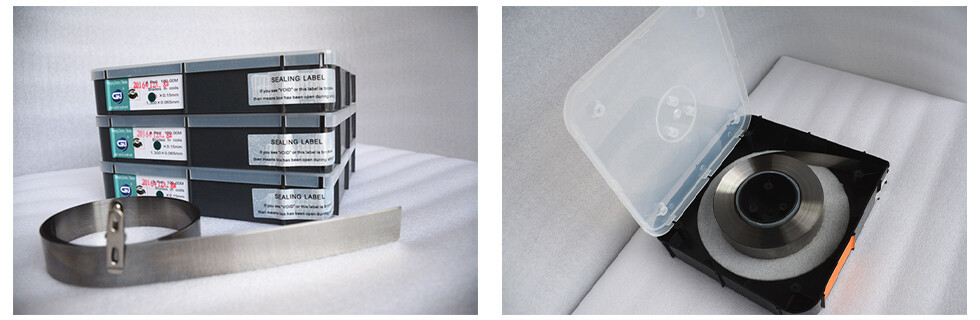

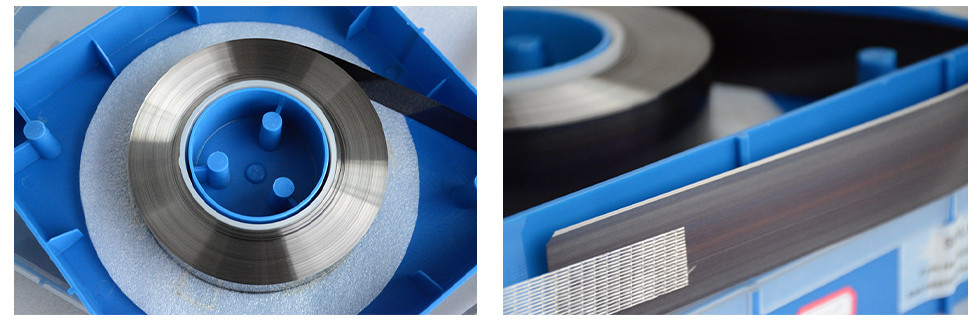

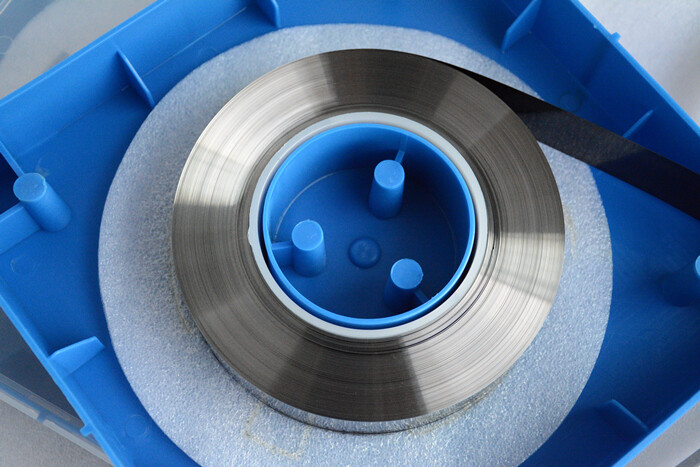

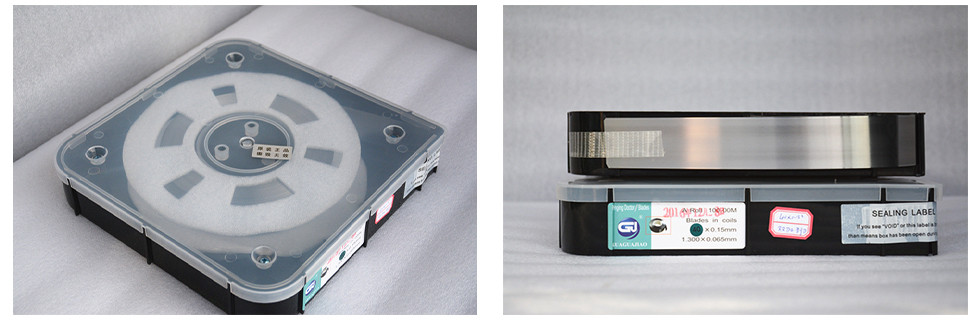

 Packaging of Doctor Blade

Standard export carton, also can be packaged as customer's requirement.

Detail: According to customer’s requirement.

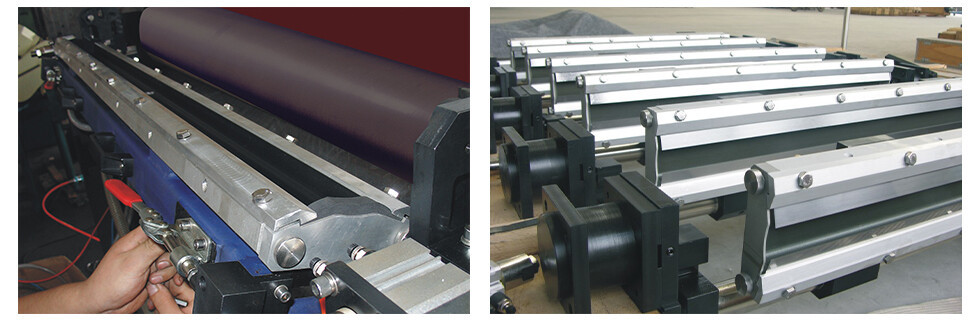

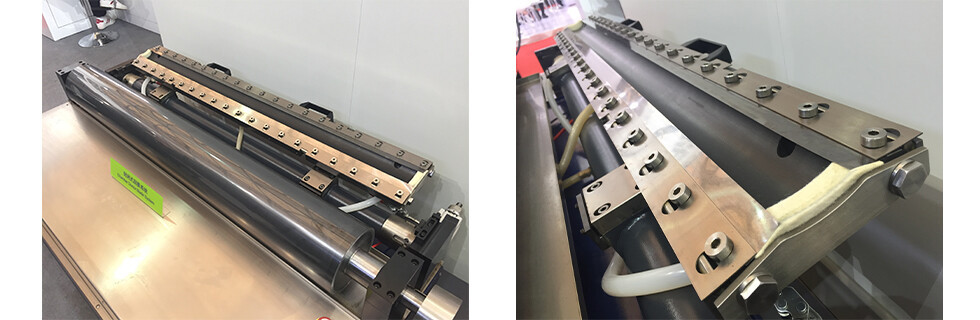

Related products: Chamber doctor blade system
