 Tungsten carbide corrugating roller

 Chrome plated corrugating roller

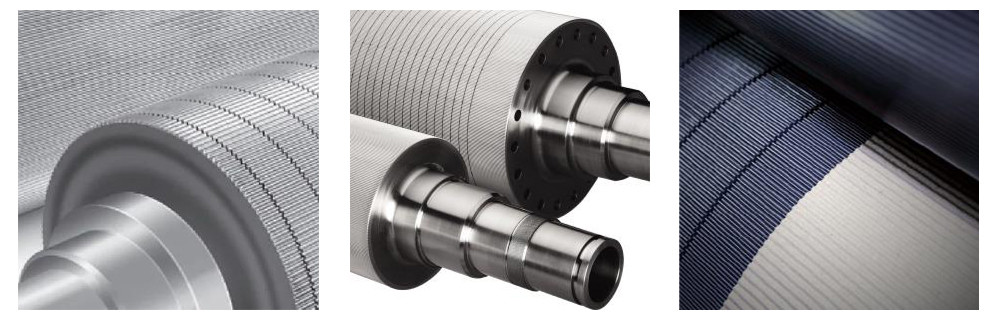

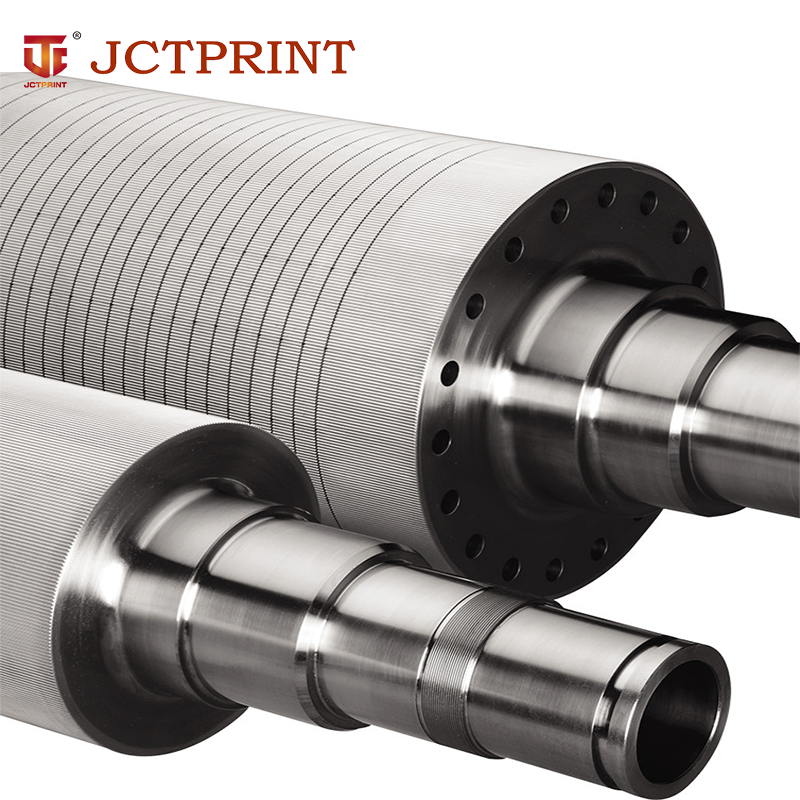

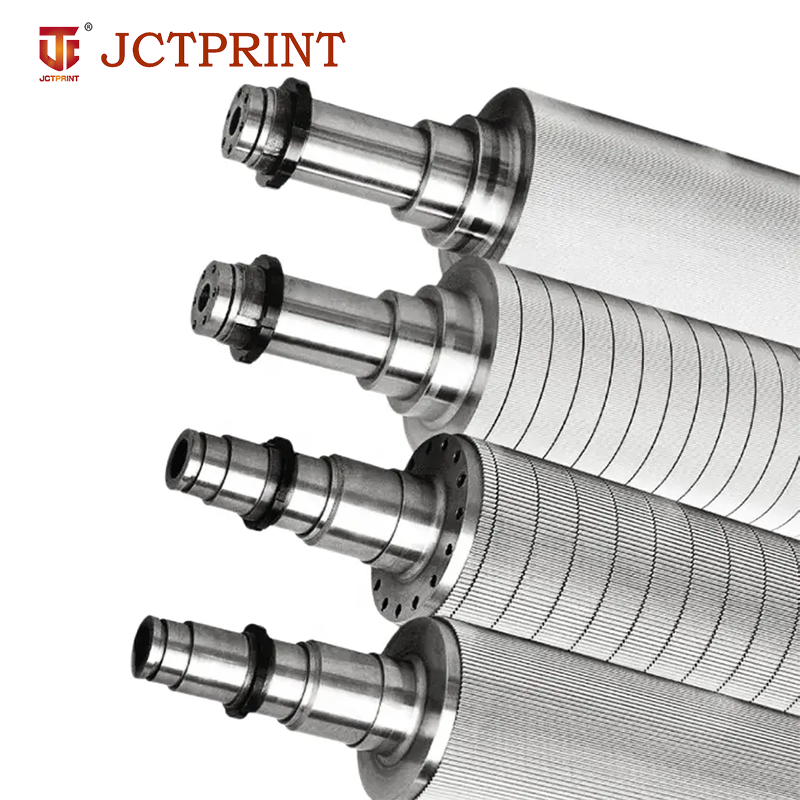

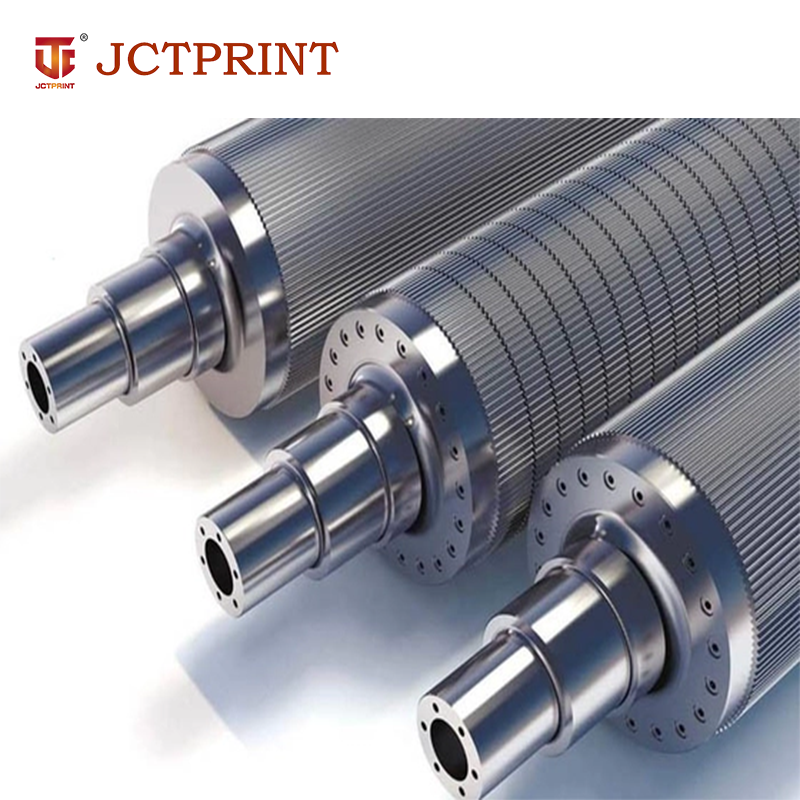

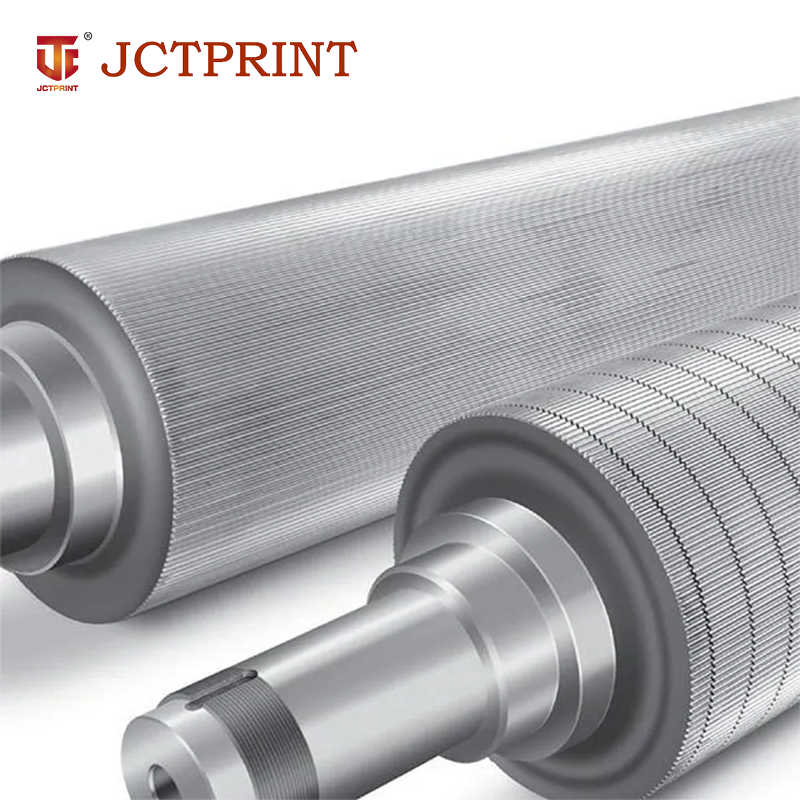

Product details

Technical specifications of flute roller

• Roll hardness: >HRC58

• Diameter: 50-500mm

• The roller surface length: 100-4000mm

• Cylinder run-out accuracy:  ≤0.02mm

• Cylindricity accuracy: ≤0.015mm

Flute selection

The most important parameter is the flute profile.Our professional technicians have rich experience in designing flute profile, and there will be no problems such as paper breaks, high-low flute etc.

We design the flute profile according to customer’s medium paper GSM, speed, FCT requirement. The flute profile is more reasonable, suitable to customer’s machine

Our advantage

• The shaft head forms an interference fit with the shaft head, and is precisely welded after strict inspection.

• The final processing of the corrugated profile is carried out by a high-precision automatic CNC corrugated roller special grinder, and the limit deviation of the teeth is controlled          within 0.01mm.

• Using the most advanced thermal spraying system JP8000 HP/HVOF, it creates precise control over flame performance and coating repeatability, achieving unique coating quality.

• Using automatic CNC corrugated roller production process dedicated polishing machine and self-developed grinding and polishing technology, the roller surface finish can reach Ra<0.6μm, which improves the groove shape accuracy and ensures the quality of corrugated rollers.

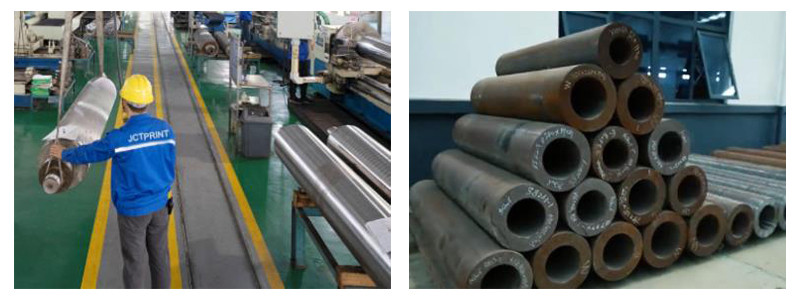

JCTPRINT's factory
