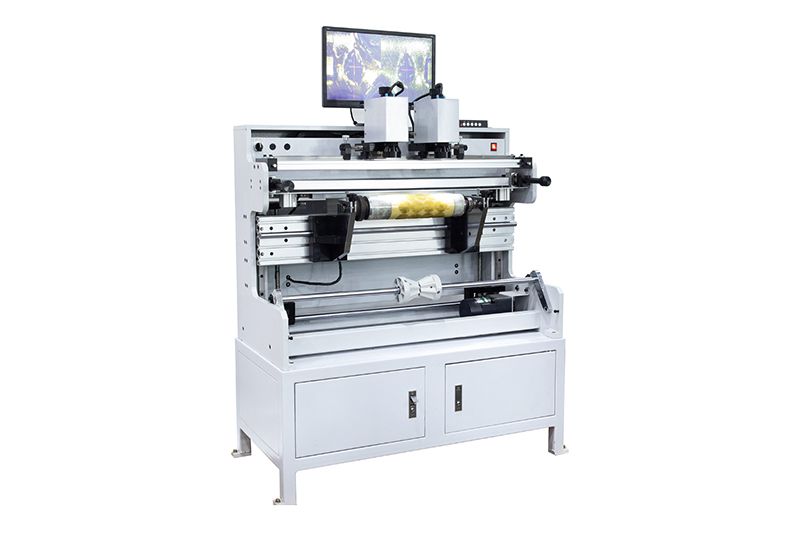

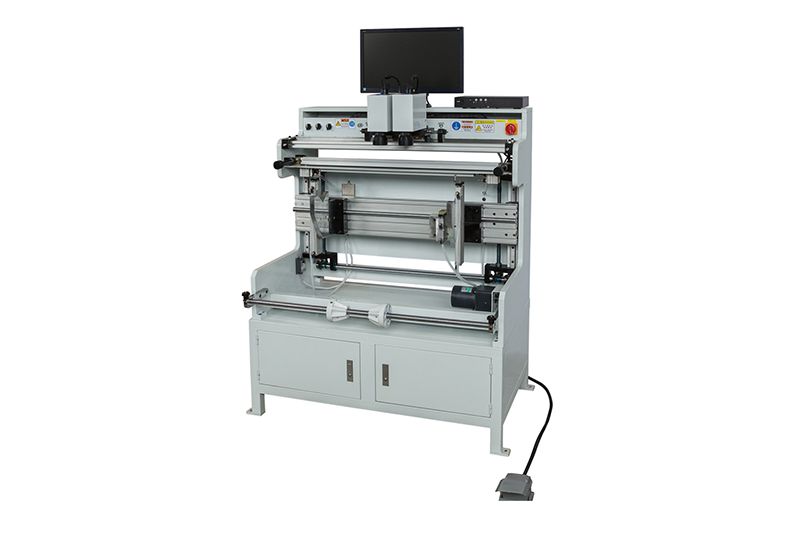

Flexo Plate Mounting Machine
Update time:Jul 23, 2026
Camera-assisted plate mounting for accurate and efficient positioning of flexographic printing plates.
· Up to 70× Magnification
· 19-inch HD Display
· Multiple Sizes Available
Inquire
Contact us
Rroduct description
Related products

Applicable To

   Flexographic rotary printing, resin plate printing, etc.

   Sleeve type plate roller plate


JCTPRINT Flexo plate mounting machine

Multiple sizes available, highly tolerant


Wide-Web Plate Mounting

For mounting printing plates on wide flexographic printing cylinders used in flexible packaging and other wide-web applications

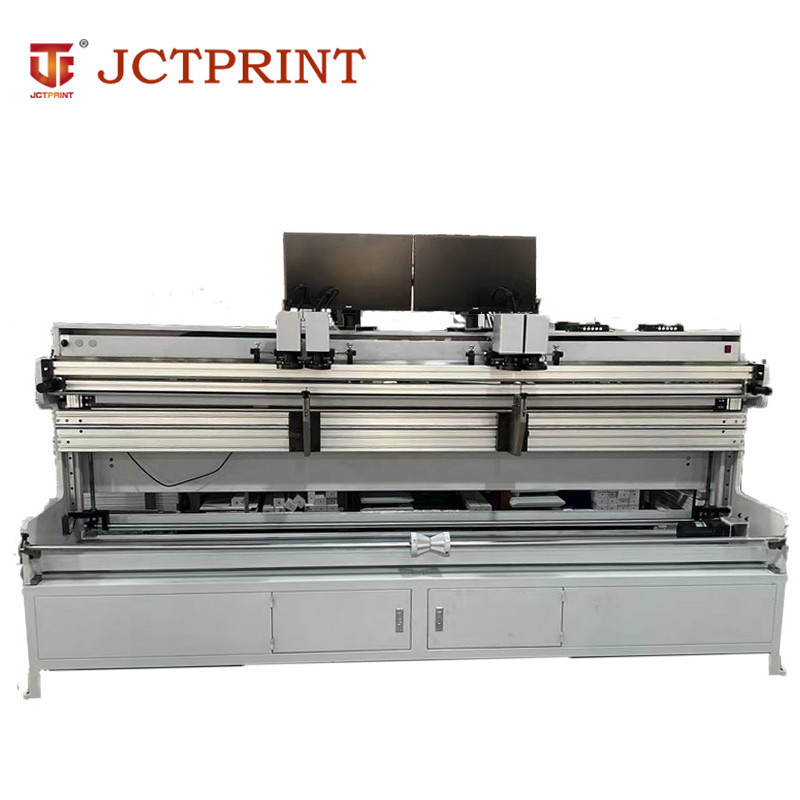

Plate roller plate mounting machine4

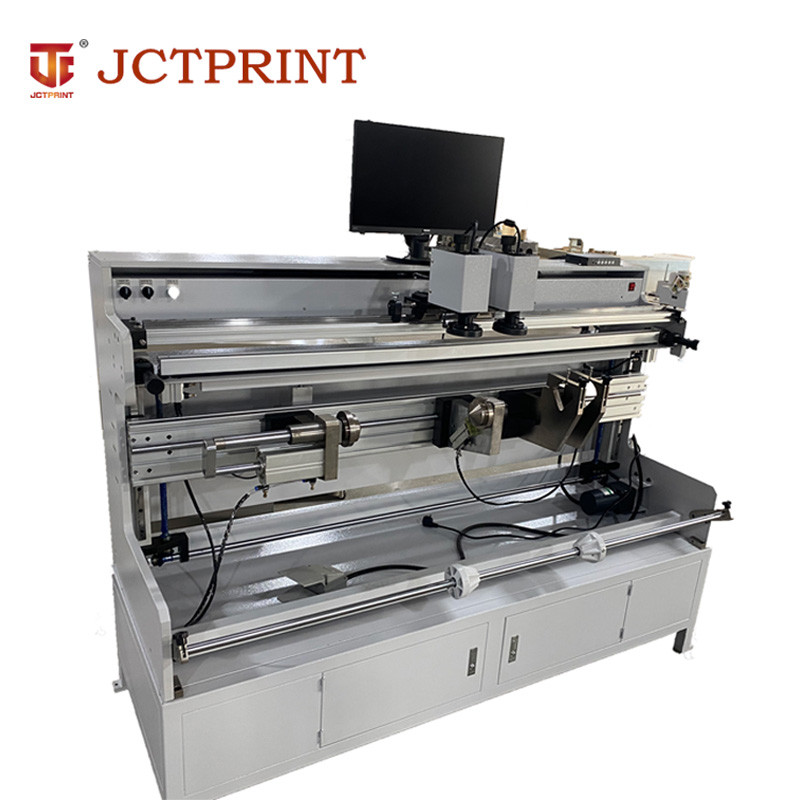

Plate roller plate mounting machine1

Narrow-Web Plate Mounting

For label printing and other narrow-web applications requiring accurate plate positioning.

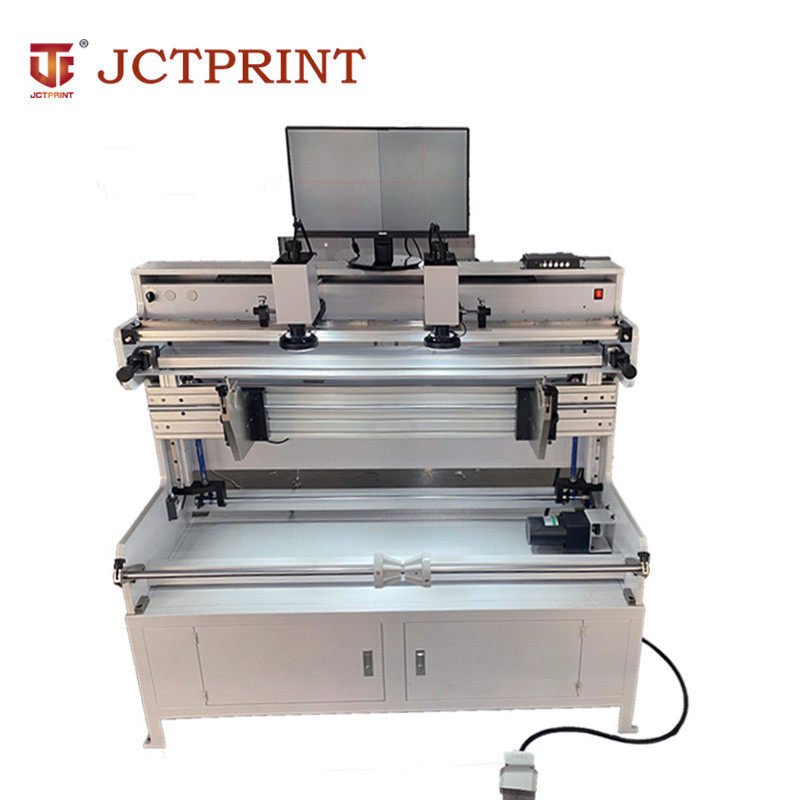

Plate roller plate mounting machine2

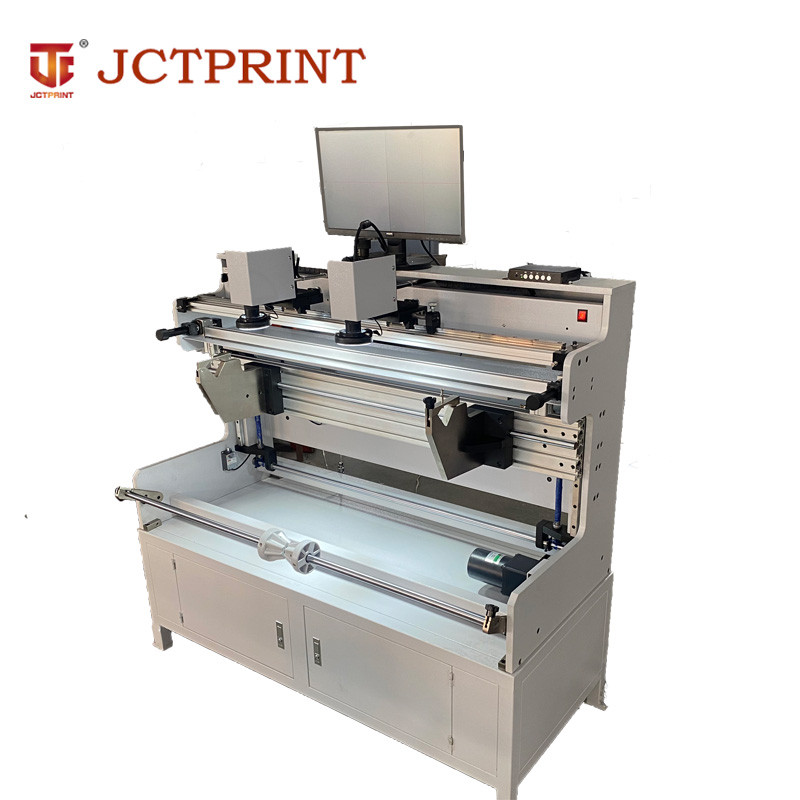

Plate roller plate mounting machine3



Why Choose the JCTPRINT Plate Mounting Machine?

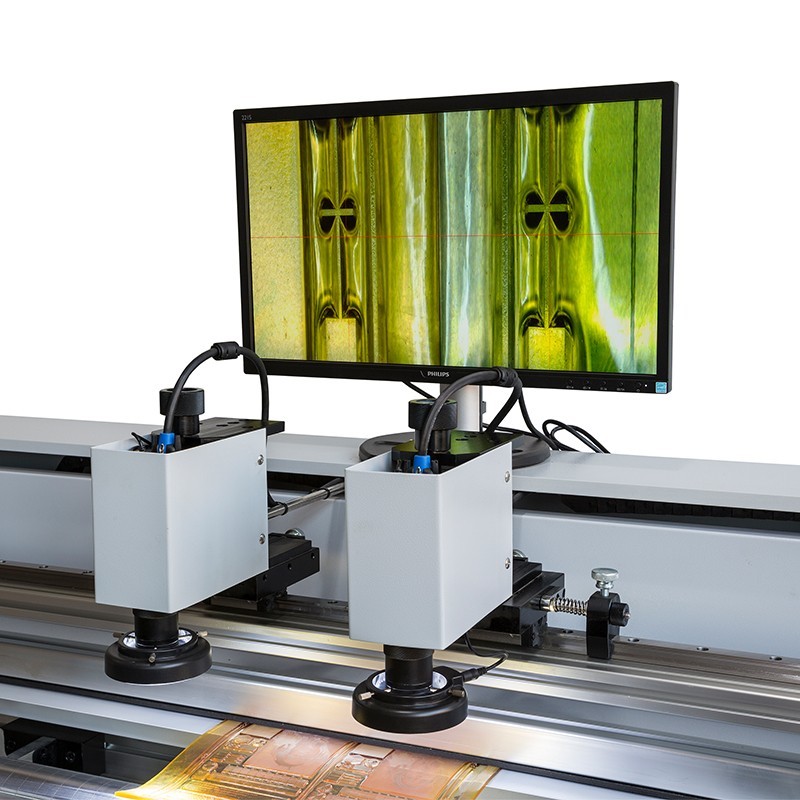

1. Clear Camera Alignment

The enlarged camera view makes registration marks easier to see and align.

2. Up to 70× Magnification

High magnification helps operators check the plate position more clearly.

3. Stable Position Adjustment

The precision guide and screw mechanism support smooth and stable positioning.

4. Simple Daily Operation

Centralized controls make plate positioning and machine adjustment easier.


 Request a Quote

Mail to: service01@jctprinting.com

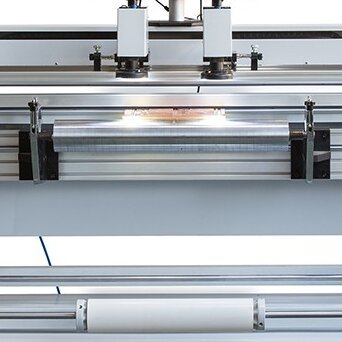

Plate roller plate mounting machine6Plate roller plate mounting machine8


Main Machine Configuration

  • 650-line color camera system

  • Up to 70× image magnification

  • 19-inch high-resolution LCD display

  • Precision vertical adjustment mechanism

  • Precision linear guide

  • Motor-driven left and right positioning

  • Centralized electrical control


Available Models

Choose the model according to your plate cylinder length and circumference.

Model
Maximum plate roller lengthMaximum plate roller circumferenceEquipment weight(kg)
TBJ-320320800160
TBJ-650650800

200

TBJ-100010001200280
TBJ-120012001200320
TBJ-130013001200340
TBJ-150015001200400
TBJ-180018001200460


Contact us to recommend a suitable model for you!👇
