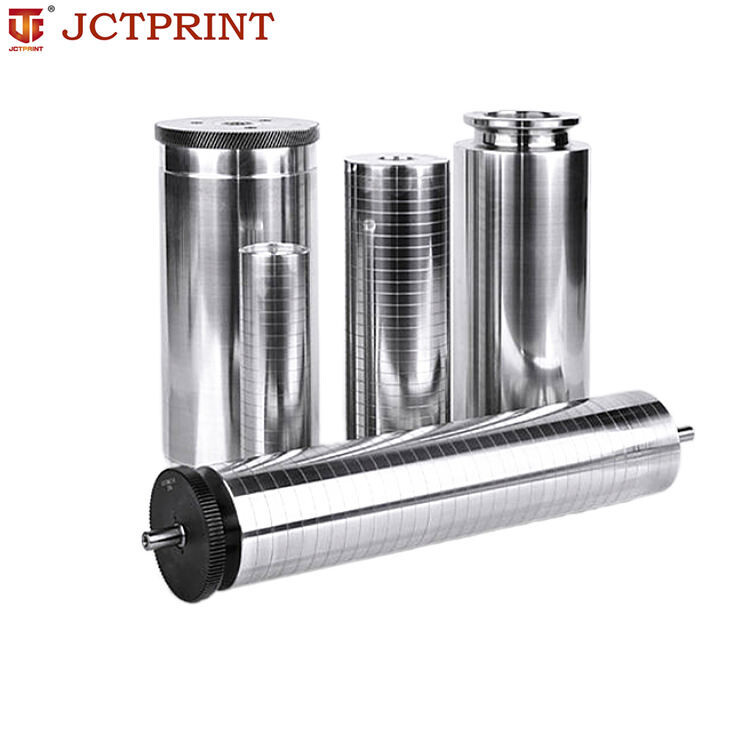

01. Custom Dimensions & Configurations

Printing cylinders can be manufactured according      to your required diameter, length, shaft dimensions      and mounting configuration.      Custom production is available based on your      technical drawings and press specifications.

02. Precision Machining

Precision machining and dimensional control      help achieve the required cylinder geometry,      concentricity and surface quality.      Manufacturing tolerances are confirmed according      to the approved technical specifications.

03. Flexible Material Options

Aluminum and steel cylinder options are      available to meet different structural,      dimensional and application requirements.      Material selection can be confirmed according      to your cylinder design and operating conditions.

04. Inspection & Balancing

Dimensional inspection and dynamic balancing      are performed according to the cylinder design      and agreed technical requirements.      Each custom cylinder is manufactured to meet      the specifications confirmed for its application.

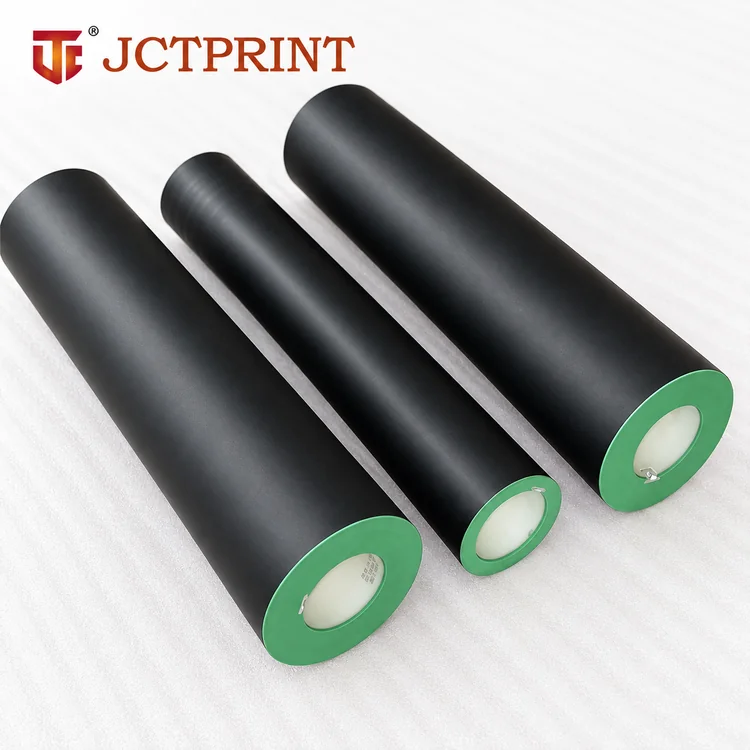

Advanced Sleeve Technology

01. Lightweight Aramid Honeycomb Core

Sleeve Ultra™ uses an aramid honeycomb      supporting structure to reduce sleeve weight      while maintaining structural support.      The honeycomb core provides energy absorption,      impact resistance and damping characteristics,      supporting stable operation during flexographic      printing.

02. FiberP™ Inner Layer

The FiberP™ inner layer combines glass      fiber and high-strength polymer fiber.      Manufactured using an automated winding process      under controlled production conditions,      it is designed to provide consistent inner      dimensions and reliable fitting on compatible      mandrels.

03. SilentShield™ End Protection

The SilentShield™ end design combines      impact buffering with full-end sealing.      This structure is designed to reduce damage      during sleeve handling and help prevent ink      and solvents from penetrating the internal      supporting structure through the sleeve ends.

04. Precision Positioning & Surface Design

Sleeve Ultra™ features a precision-machined      metal positioning slot for reliable positioning.      Its outer surface has also been tested with      major plate mounting tape brands to support      plate mounting and reduce adhesive residue      during plate removal.

Approx. 38% Weight Reduction

Based on a documented comparison with a      conventional sleeve of the same specified dimensions.

High-Speed Printing Application

In this documented application, the Sleeve      Ultra™ product was reported to maintain      stable operation under printing conditions      of 650 m/min.      Actual performance depends on sleeve dimensions,      press configuration and operating conditions.

Printing Applications

✓ Wide-Web Flexographic Printing
     ✓ CI Flexographic Printing
     ✓ Flexible Packaging Production
     ✓ Industrial Flexographic Printing

Product compatibility is subject to the      specific press configuration and technical      requirements.

For Flexo Printing Cylinders

✓ Press brand and model
     ✓ Cylinder diameter and length
     ✓ Shaft and mounting dimensions
     ✓ Existing cylinder drawings or photos

For Plate Mounting Sleeves

✓ Press brand and model
     ✓ Mandrel or bridge sleeve diameter
     ✓ Printing repeat / circumference
     ✓ Required sleeve length
     ✓ Existing sleeve specifications or drawings

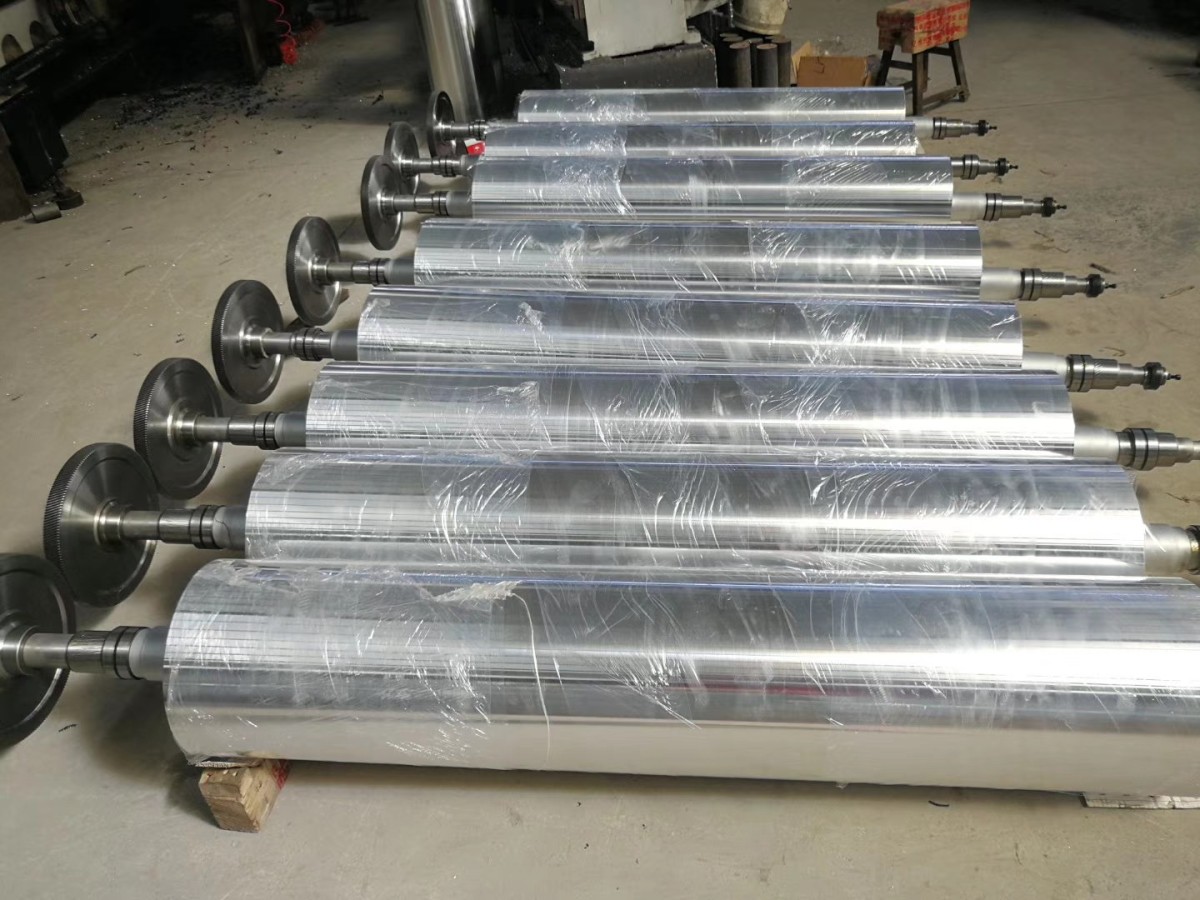

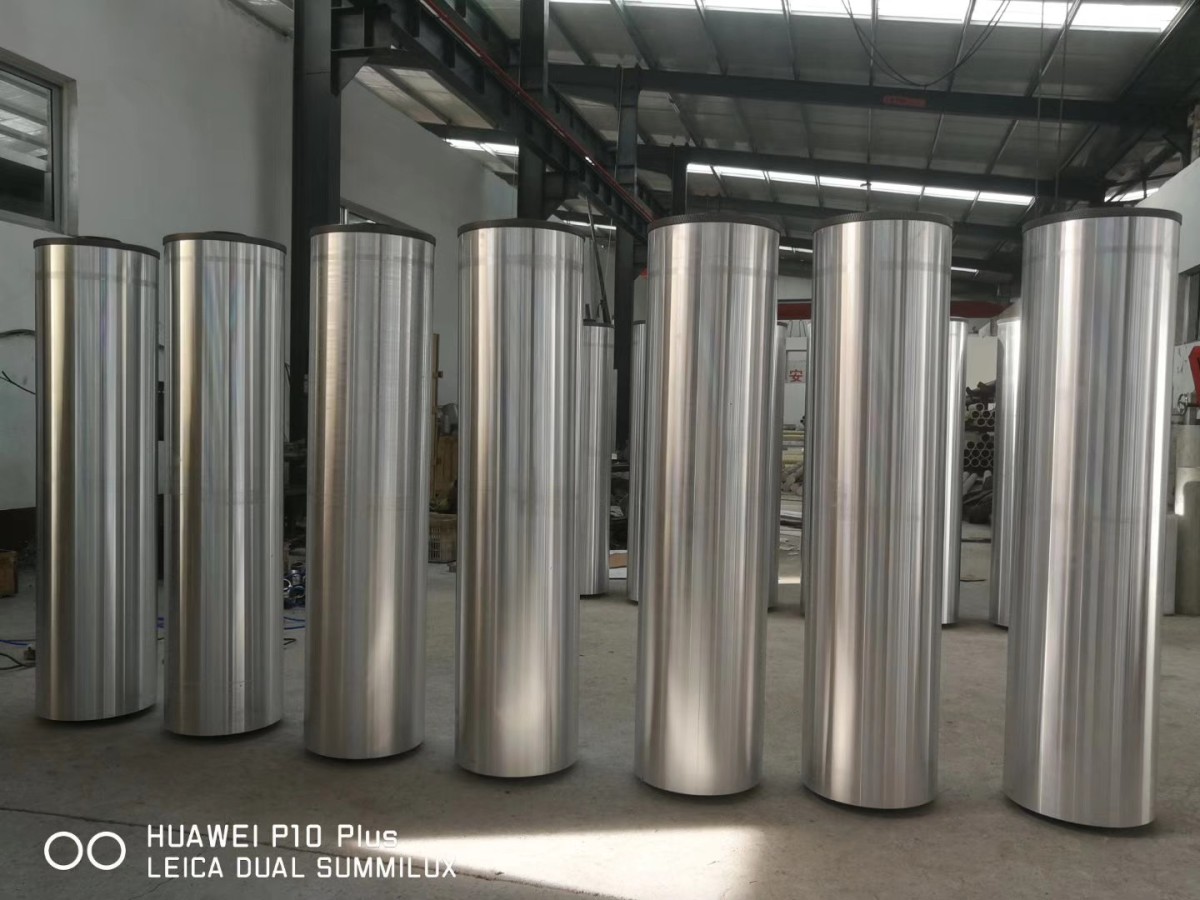

Precision Cylinder Manufacturing

Custom cylinder machining according to      approved dimensions and technical drawings.

Dimensional Inspection & Quality Control

Dimensional inspection and quality control      according to the technical requirements      of each product.

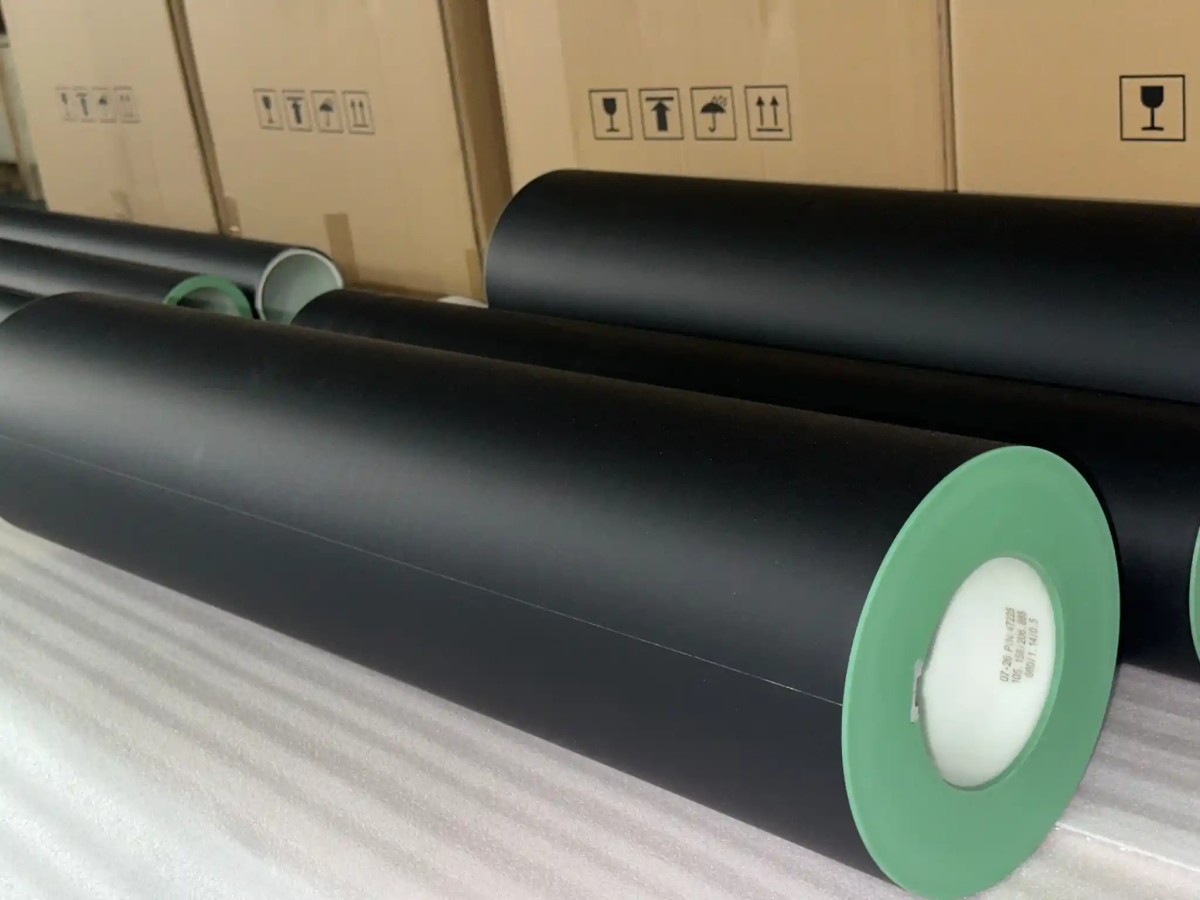

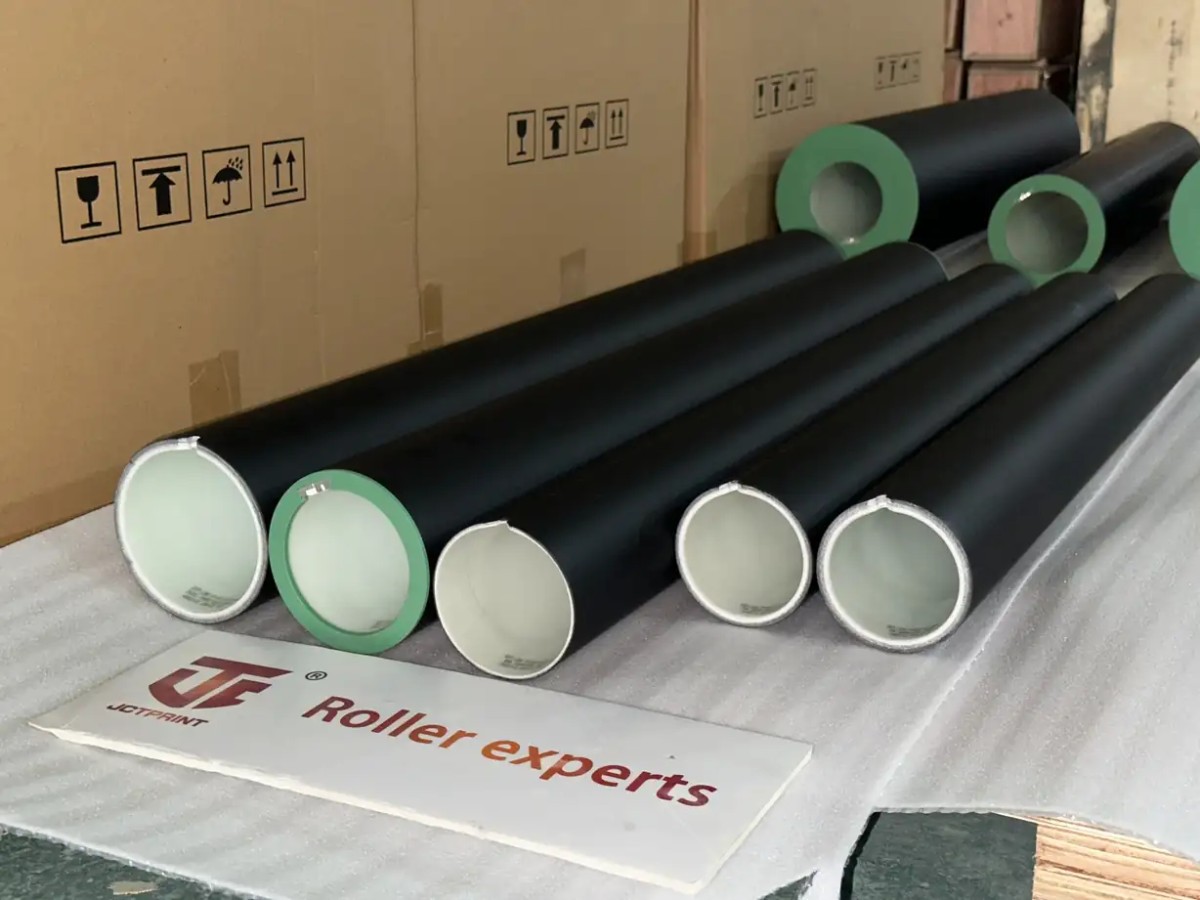

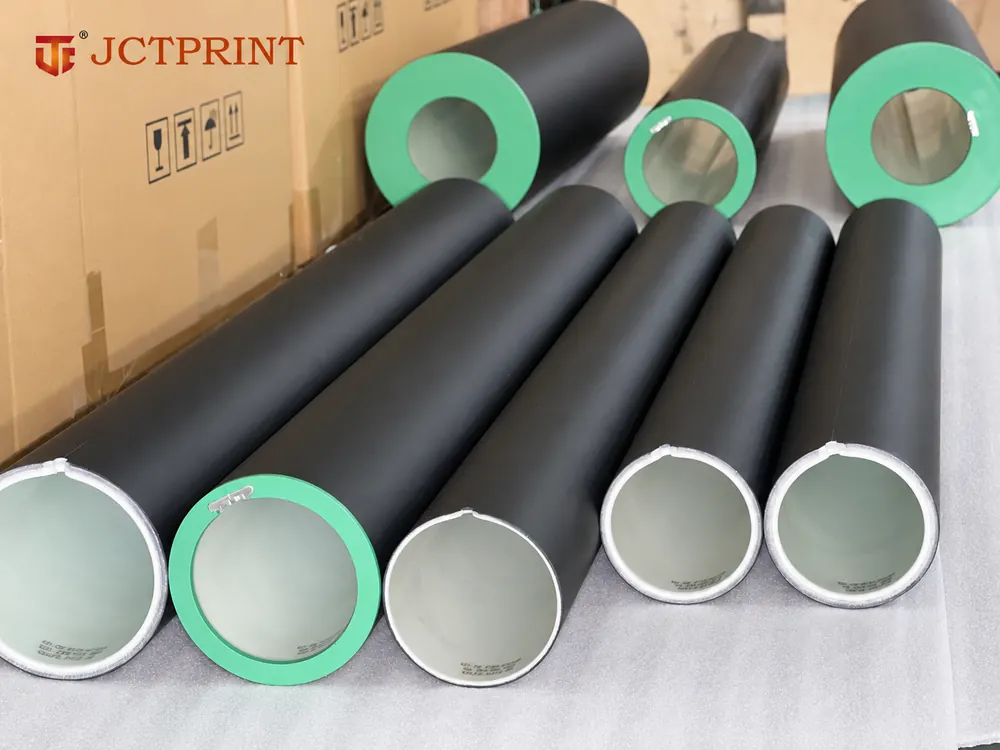

Sleeve Ultra™ Manufacturing

The FiberP™ inner layer is manufactured      using an automated winding process under      controlled production conditions.
