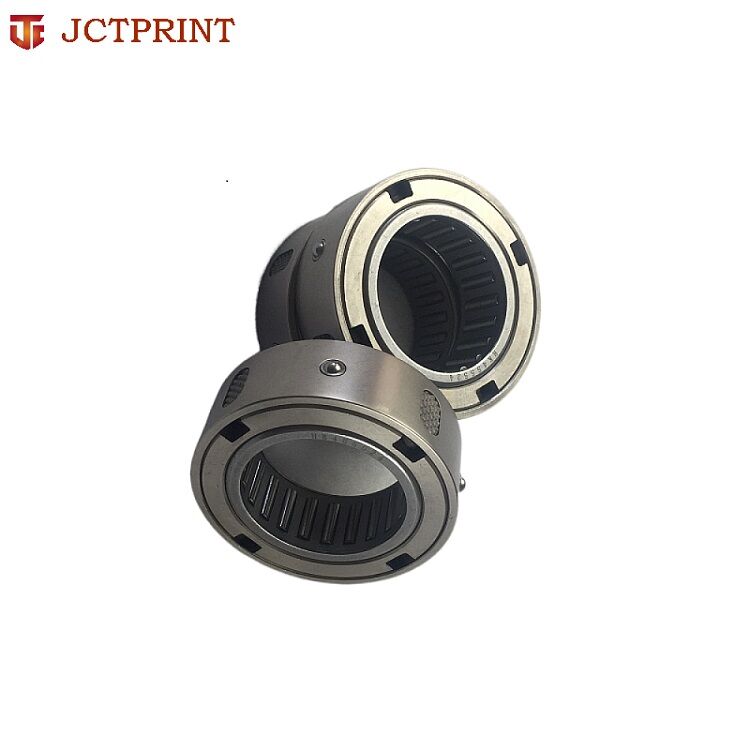

Friction Ring

Update time:2021-04-27

1.Improves the speed of the slitter

2.Improved winding accuracy

3.Reduce the difficulty of winding

4.High degree of automation

5.Shortens the preparation time and achieve the humanized operation

Inquire

Rroduct description

Product description：

The differential shaft ring consists of a plurality of slip rings, which can overcome the problem of unwinding and material damage. The slippage rings are controlled to slip at a certain slip torque (torque), and the amount of slip exactly compensate for the difference in speed, thus it can control the tension of each roll precisely, which ensure the winding quality.

Advantage：

1.Improves the speed of the slitter

2.Improved winding accuracy

3.Reduce the difficulty of winding

4.High degree of automation

5.Shortens the preparation time and achieve the humanized operation

Specifications

The width of the slip ring depends on the narrowest width of the cut material, which can be customized according to your needs

1. Key type (central air pressure and mechanical side pressure type)
3 inch key type friction element
Outside diameter		Φ75.5mm
The maximum action diameter		Φ78mm
Standard width		15,20,25,30,35,40,50mm
Standard internal diamete		Φ45,Φ50,Φ55mm

6 inch key type friction element
Outside diameter		Φ151mm
The maximum action diameter		Φ156mm
Standard width		20,25,30,35,40,50mm
Standard internal diamete		Φ60,Φ75,Φ80mm

120mm

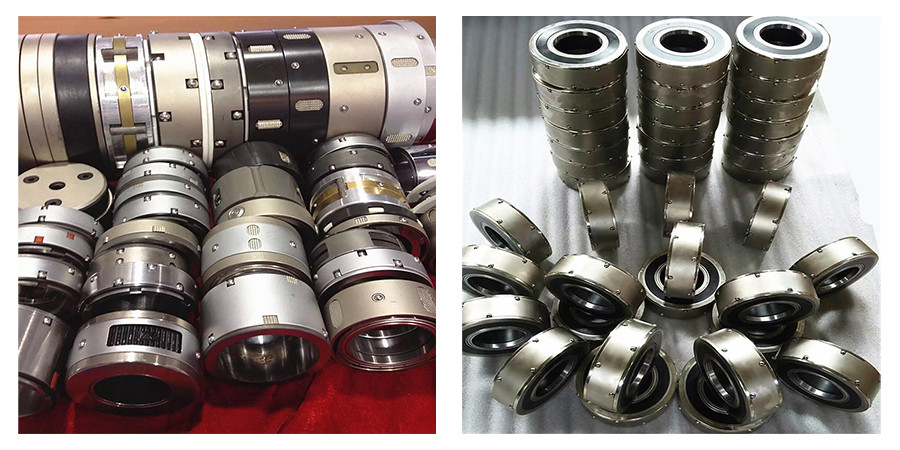

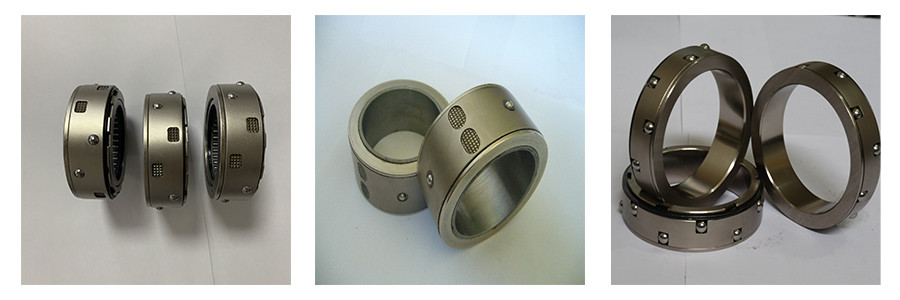

Attached pictures

2. Steel ball type
8 balls
Type	Outside diameter	The maximum action diameter	Standard width	Standard internal diameter
2 inch	Φ49mm	Φ52.5mm	15,20,25,30mm	Φ25,Φ30,Φ35mm
Double row ball
3 inch	Φ75.5	Φ78mm	15,20,25,30,35,40,50mm	Φ50,Φ55
Double row ball

12 balls
Type	Outside diameter	The maximum action diameter	Standard width	Standard internal diameter
3 inch	Φ75.5mm	Φ78mm	15,20,25,30,35,40,50mm	Φ50,Φ55,Φ60mm
Double row ball
6 inch	Φ151mm	Φ156mm	20,25,30,35,40,50mm	Φ60,Φ75,Φ80mm
Double row ball

24 balls
10 inch Steel ball type friction element Double row ball (24 beads)
Outside diameter		Φ253mm
The maximum action diameter		Φ258mm
Standard width		40,50,60,75mm
Standard internal diamete		Φ100,Φ120,Φ140mm
