Air shafts are specialized winding and unwinding shafts designed for industrial applications. They operate through a unique mechanism where the surface (key bars/strip bars) extends upon inflation and retracts rapidly upon deflation. This design offers exceptional convenience, requiring users only to provide a compressed air source with pressure maintained between 6-8 kg/cm².

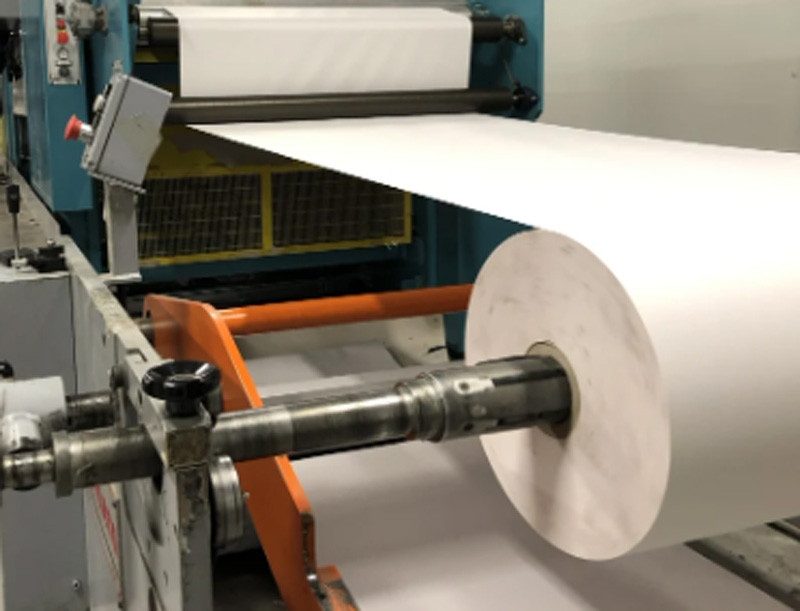

Ease of Use and Operation:When securing external components like cylindrical paper tubes, users simply use an inflation gun directed at the shaft's air nozzle to inflate it. This action causes the key bars/strip bars to protrude and firmly support the external component. For unloading, releasing the external component is straightforward—users press the movable air core on the inflation nozzle by hand to deflate the shaft, causing the key bars/strip bars to retract to their original position, facilitating easy removal of the external component.

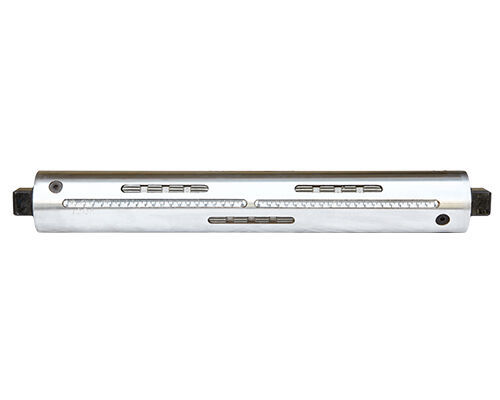

Types of Air Shafts:Air shafts are broadly categorized into key bar type (available in steel and aluminum variants) and strip bar type (offered in three-piece, four-piece, and six-piece configurations). Each type serves diverse needs across industries involved in winding, unwinding, and cutting processes. These include but are not limited to printing, packaging, plastics, papermaking, fiberglass, pharmaceuticals, electronics, batteries, textiles, and various coil processing industries.

JCTPRINT’s Material Selection:JCTPRINT prioritizes high-quality materials for their air shafts, utilizing precision-drawn pipes made from premium steel (excluding non-standard and special specifications). These pipes feature uniform wall thickness, ensuring consistent key bar heights upon inflation to minimize eccentricity in inflated paper tubes. This design optimizes dynamic balance during shaft rotation by reducing centrifugal forces.

The export-type key bar structure incorporates a full-length base film, creating a robust protective ring around the shaft's airbag. Additionally, JCTPRINT employs pagoda springs capable of enduring 300,000 compressions without fracturing, backed by a one-year warranty. For applications requiring lighter weight solutions, they offer aluminum alloy strip bars suitable for standard paper tubes and similar applications.

Conclusion:JCTPRINT’s commitment to precision manufacturing and high-quality materials ensures their air shafts enhance operational efficiency and reliability across a wide range of industrial applications. Whether you’re in printing, packaging, plastics, or any industry needing efficient winding and unwinding solutions, JCTPRINT’s air shafts are engineered to meet your specific requirements with durability and performance in mind.

For more information on JCTPRINT’s air shaft solutions or to discuss custom manufacturing options, please visit JCTPRINT’s website.
