Trouble with Inaccurate Cuts? Here's How Magnetic Cylinders Help

Are you struggling with uneven cuts, misalignment, or inconsistent die pressure in your rotary die cutting process? These issues not only affect product quality but also increase material waste, slow down production, and impact customer satisfaction.

The good news? Magnetic cylinders offer a reliable solution to these common die cutting problems. At JCTPRINT, we specialize in producing high-precision magnetic cylinders designed to ensure consistent, clean, and efficient cuts — even at high speeds.

Common Causes of Inaccurate Die Cutting

Before diving into the solution, it’s important to understand why cutting problems occur:

• Uneven die pressure due to poorly aligned cylinders

• Flexible dies slipping or shifting during operation

• Inconsistent magnetic force across the cylinder

• Worn or low-tolerance cylinders that disrupt cutting depth

• Low compatibility with existing rotary machines

These factors lead to problems like incomplete cuts, edge tearing, off-registration, or even damage to flexible dies.

How Magnetic Cylinders Solve These Problems

 1. Secure Die Positioning

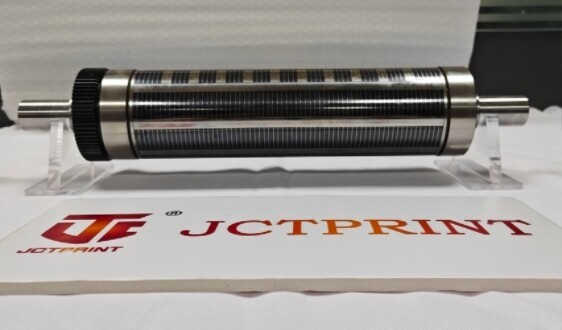

JCTPRINT magnetic cylinders use strong, evenly distributed magnets to hold flexible dies firmly in place. This prevents movement during rotation, eliminating die shifts and improving registration accuracy.

 2. Micron-Level Tolerances

We machine every cylinder using high-precision CNC equipment, controlling roundness, runout, and surface flatness to micron tolerances. The result: uniform pressure distribution and consistently clean cuts across the entire web.

 3. Better Repeatability

Whether you're running short runs or long jobs, JCTPRINT cylinders ensure repeatable performance. Once your flexible die is aligned, it will hold its position without slippage throughout the production cycle.

 4. Reduced Downtime

Because flexible dies can be installed and removed quickly with magnetic cylinders, changeovers are faster, and there's less risk of operator error during setup.

 5. Extended Tool Life

With smoother operation and better alignment, your flexible dies will experience less wear and fewer cutting inconsistencies, helping you save on tooling costs over time.

Compatible with All Leading Press Brands

JCTPRINT magnetic cylinders can be customized for compatibility with:

• Mark Andy

• Gallus

• Nilpeter

• Bobst

• Heidelberg

• Omet, and more

No matter what machine you use, we ensure perfect fit and precision performance.

Real-World Applications

Our magnetic cylinders are trusted by printers and converters across industries:

• Label printing – Avoid edge lifting and poor kiss-cutting

• Folding cartons – Cut through complex layouts with precision

• Security and RFID labels – Where tight tolerances are critical

• Pharmaceutical packaging – For consistent and compliant results

Why Choose JCTPRINT Magnetic Cylinders?

 Exported to 40+ countries

Premium magnet materials

 Customized to your press

 Fast delivery & full support

 In-house quality inspection systems

Ready to Fix Your Cutting Issues?

If you're tired of waste, misalignment, and inconsistent cuts, it’s time to upgrade to JCTPRINT magnetic cylinders. Contact us today for expert recommendations and a free quote.
