In the realm of industrial manufacturing and automation, air shafts are commonplace mechanical components used for securing and transmitting shafts or roll materials. This article delves

into the three distinct types of air shafts: Key Strip Type, Through Key Type, and Lath Type air shafts, along with their respective applications.

1. Key Strip Type Air Shaft/ Lug type air shaft

Working Principle: The Key Strip Type air shaft employs multiple key strips distributed within the shaft. When air is introduced into the shaft, the key strips clamp onto the inner surface of

the shaft, providing fixation and transmission.

Applications:

Printing Machinery: Key Strip Type air shafts are suitable for controlling tension in paper, film, and roll materials, ensuring print quality.

Coating Equipment: They are used to maintain tension for even coating in operations such as coating, gluing, and painting.

Packaging Machinery: These air shafts are utilized for packaging, sealing, and cutting roll materials, maintaining roll stability.

2. Through Key Type Air Shaft

Working Principle: Through Key Type air shafts feature keys that traverse both the inner and outer sides of the shaft. When inflated, these keys grip the shaft, achieving clamping and

transmission.

Applications:

Cigarette Packaging Machines: Through Key Type air shafts are used for packaging cigarette paper, ensuring uniform tension.

Plastic Film Production: They are applicable in extrusion of thin films, coating, and winding operations, maintaining material tension.

Printing Equipment: Utilized in high-speed printing to ensure print quality and reduce paper waste.

3. Lath Type Air Shaft/Leaf type air shaft

Working Principle: Lath Type air shafts consist of multiple transverse laths distributed within the shaft. When inflated, these laths bend, gripping the shaft.

Applications:

Paper Processing: Lath Type air shafts are used for cutting, winding, and tension control, ensuring the flatness of paper or roll materials.

Textile Machinery: They are used for winding and transmission of fabric or textiles, maintaining fabric tension.

Food Packaging Equipment: In the food packaging industry, these air shafts ensure the secure fastening and transmission of packaging materials.

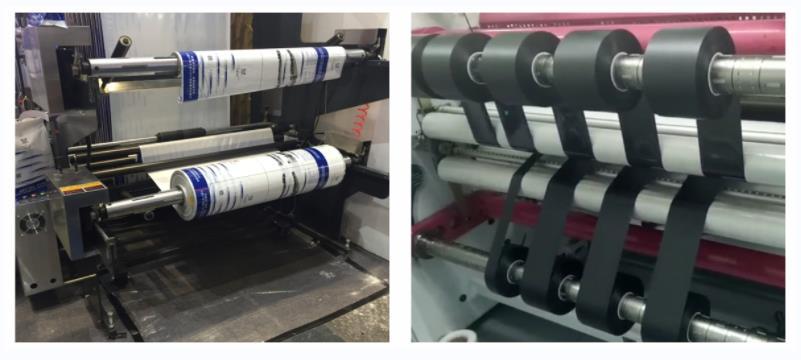

Different types of air shafts are tailored to specific application areas. Choosing the appropriate type based on your specific requirements can enhance equipment performance, production

 efficiency, and product quality. These air shafts play crucial roles in industries spanning automation, printing, packaging, and textiles, providing reliable solutions for the manufacturing

process.
