Common Air Shaft Problems and How to Fix Them

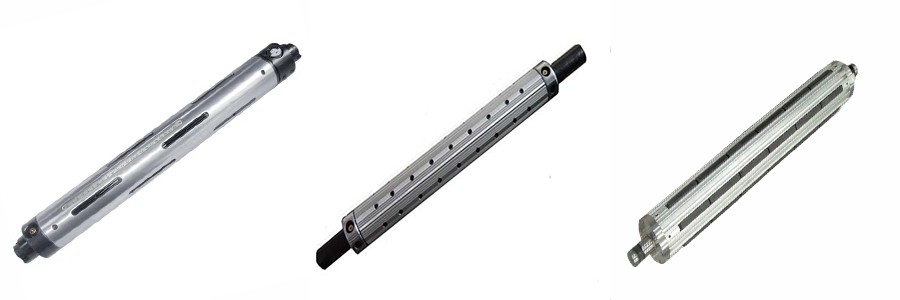

Air shafts (pneumatic shafts) play a critical role in winding and unwinding operations. When they fail, the entire production line may stop, causing tension instability, core slippage, or poor winding quality. Fortunately, most air shaft problems are predictable and easy to fix with proper maintenance.

This guide explains the most common air shaft issues, their root causes, and practical solutions to keep your production running smoothly.

1. The Air Shaft Does Not Inflate Properly

Common Causes

• Air bladder leakage

• Valve malfunction

• Insufficient air supply

• Bladder installation issues

• Internal components blocked

How to Fix

1. Check air pressure and confirm that the compressor is delivering the correct PSI.

2. Apply soapy water to detect leakage in the bladder or valve.

3. Tighten or replace the valve core if air escapes from the valve.

4. Remove the end cover and inspect whether the bladder is twisted, cracked, or hardened.

5. Replace the bladder if necessary.

Tip: If the shaft inflates slowly, the problem is usually the valve or internal blockage.

2. The Shaft Cannot Hold the Core Firmly

Common Causes

• Lugs or leaves not expanding fully

• Bladder strength weakened

• Excessive wear of mechanical parts

• Core size mismatch

How to Fix

1. Confirm that the core diameter matches the shaft specification.

2. Inflate the shaft and check if all lugs/leaves expand evenly.

3. If expansion is weak, replace the air bladder.

4. Inspect the lug springs or leaf mechanisms for wear.

5. Lubricate internal moving parts (non-corrosive oil only).

3. Air Leakage Inside the Shaft

Common Causes

• Aged or cracked air bladder

• Loose air fittings

• Damaged sealing rings

• Internal pipe wear

How to Fix

1. Spray soapy water to locate the leak.

2. Tighten all screws around the end plates and fittings.

3. Replace worn O-rings or sealing gaskets.

4. If leakage is inside the chamber, replace the bladder or internal pipe.

4. Uneven Expansion of Lugs or Leaves

Common Causes

• Bladder installed unevenly

• Dust or debris inside the chamber

• Mechanical deformation

• Uneven wear of lugs or springs

How to Fix

1. Remove the end cover and clean the interior thoroughly.

2. Check for broken or weakened springs behind the lugs/leaves.

3. Reinstall the bladder without twisting or folding.

4. Replace any damaged lugs or guide pieces.

Tip: Uneven expansion is one of the most common causes of core slipping during high-speed winding.

5. Difficulty in Deflating the Shaft

Common Causes

• Blocked valve

• Internal pressure not fully released

• Deformed lug or leaf stuck in place

• Dirt buildup inside mechanisms

How to Fix

1. Press the valve several times to release all pressure.

2. If still inflated, remove the end cover and manually reset the lugs or leaves.

3. Clean dust or adhesive residue from the mechanism.

4. Replace the valve if it does not vent properly.

6. Shaft Vibrations During Operation

Common Causes

• Core not aligned

• Shaft bent or damaged

• Uneven expansion of lugs

• Worn bearings or support equipment

How to Fix

1. Check core straightness and confirm proper mounting.

2. Inspect shaft body for bending or impact damage.

3. Ensure all lugs are expanding uniformly.

4. Replace bearings or support rollers if they’re worn.

7. Lifespan of the Air Bladder Is Too Short

Common Causes

• Excessive inflation pressure

• High heat or humidity

• Continuous long-term operation

• Using non-original bladders

How to Fix

1. Use the recommended working pressure (overinflation is the #1 cause of early failure).

2. Avoid storing the shaft in hot environments.

3. Use high-quality bladders with proper thickness and elasticity.

4. Regularly clean and dry the internal chamber.

8. Best Practices to Reduce Air Shaft Problems

• Perform monthly inspections

• Keep the shaft clean and dry

• Avoid dropping or hitting the shaft

• Replace valves annually

• Use compatible, high-quality air bladders

• Follow proper inflation pressure guidelines

Why Choose High-Quality Air Shafts from JCTPRINT

JCTPRINT provides:

• Precision air shafts for printing, slitting, laminating, coating, and packaging

• Long-life air bladders and spare parts

• Full customization (diameter, length, lug type, leaf type, core size)

• Strict quality control and fast delivery

Reliable air shafts reduce downtime, improve tension stability, and ensure consistent production.

Conclusion

Air shaft failures are common but easy to fix when identified early. By understanding the typical problems—leaks, inflation issues, uneven expansion, or difficulty in deflation—you can keep your production line stable and efficient. Regular maintenance and high-quality components will significantly extend the life of your air shaft system.
