From Factory to Finish: The Journey of a JCTPRINT Ceramic Anilox Roller

At JCTPRINT, every ceramic anilox roller is the result of precision engineering, strict quality control, and over 20 years of manufacturing expertise. But what exactly goes into creating a high-performance anilox roller trusted by converters and OEMs worldwide?

This article walks you through the complete journey of a JCTPRINT ceramic anilox roller—from raw steel to final inspection—highlighting the key stages, equipment, and technologies used.

1. CNC Machining: Precision from the Core

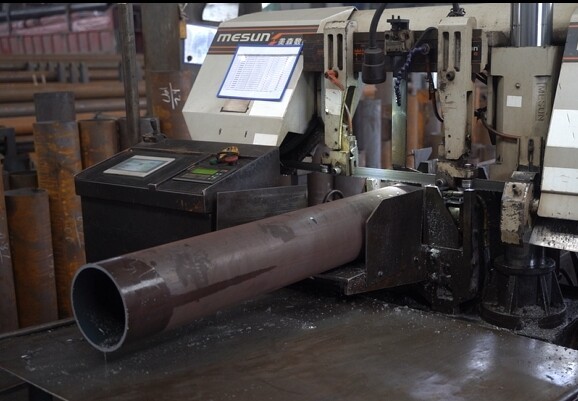

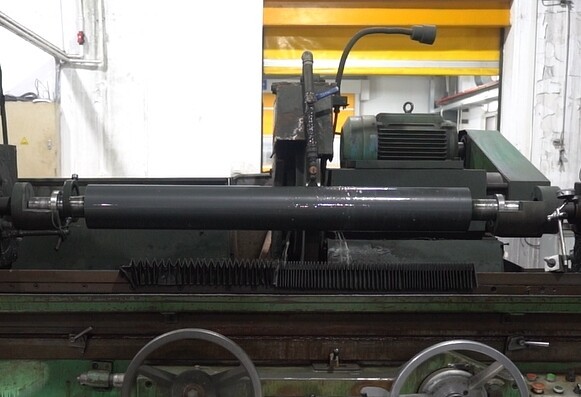

The process begins with machining the steel roller body. High-precision CNC turning and grinding machines are used to ensure the roller core has the correct concentricity, run-out tolerance, and surface finish. These are critical for smooth installation and vibration-free operation in high-speed flexo and coating presses.

2. Surface Preparation: Blasting for Adhesion

Before coating, the roller surface undergoes high-pressure sandblasting. This roughens the metal surface to ensure optimal bonding of the subsequent metal and ceramic coatings. A uniform surface profile is essential to prevent delamination during operation.

3. Bonding Layer: Thermal Spraying

A bonding metal layer, typically NiCr or other high-adhesion alloys, is thermally sprayed onto the roller surface. This layer acts as a foundation to hold the ceramic coating securely, even under demanding printing or coating conditions.

4. Ceramic Coating: Advanced Plasma Spraying by Oerlikon Metco

JCTPRINT uses Oerlikon Metco ceramic spraying systems from Switzerland to apply a durable chromium oxide (Cr₂O₃) ceramic layer. This advanced plasma spraying technology ensures:

• Exceptional hardness (up to 1300 Vickers)
• Excellent wear and chemical resistance
• Uniform coating thickness for consistent engraving quality

This ceramic layer is the defining element of a long-lasting, high-performance anilox roller.

5. Laser Engraving: Precision by ALE

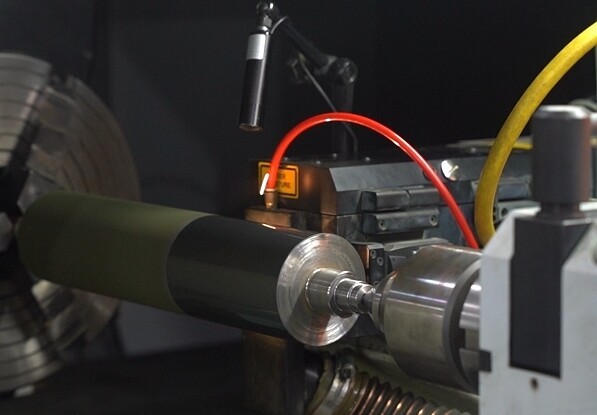

After ceramic coating, the roller moves into the engraving phase. JCTPRINT utilizes ALE (UK) laser engraving systems, which are known for high-precision control over cell geometry.

Each anilox roller is engraved with a specific line screen (LPI), cell volume (BCM), and pattern (such as 60° hex, elongated hex, or channel cell), tailored to the customer’s printing or coating application.

6. Microscopic Inspection: Measured by AniCAM

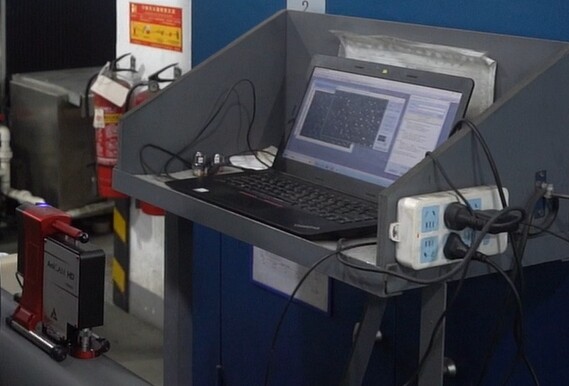

To ensure engraving accuracy, every roller is inspected using the AniCAM HD inspection system. This 3D microscopic device captures detailed images of cell shape, wall structure, depth, and calculates the exact BCM value.

This non-contact analysis ensures each roller meets specifications before shipping and provides verifiable documentation to the customer.

7. Dynamic Balancing & Final Testing

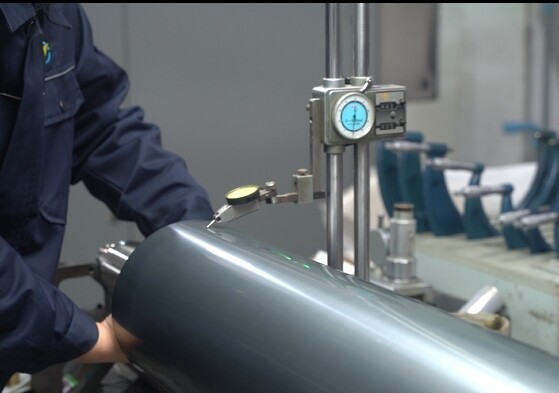

Each roller is dynamically balanced to eliminate rotational vibration during high-speed operation. Surface hardness, run-out, and coating integrity are tested to ensure mechanical and printing stability.

8. Packaging & Logistics

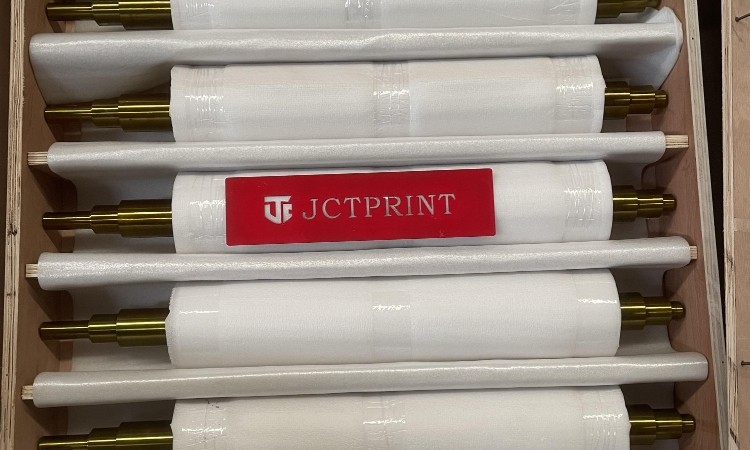

After passing all quality checks, the rollers are securely packed in custom wooden crates with anti-corrosion wrapping. JCTPRINT’s logistics system supports global shipping to over 40 countries with export-standard documentation and real-time tracking.

Why This Matters

Choosing the right anilox roller is not just about line count—it’s about durability, coating precision, and long-term print performance. At JCTPRINT, our investment in global-class equipment like Oerlikon Metco, ALE, and AniCAM ensures each roller meets the highest industry standards.

Learn More

Explore our full range of ceramic anilox rollers, anilox sleeves, and flexo printing accessories on JCTPRINT’s official website. For custom specs or sample inspection reports, feel free to contact our sales team.
